Options:
◆ Adopting programmable control(frequency converter), reliable in performance,
convenient in operation; the lapping type and time can be designed on
custommers'requirements.
◆ Equipped with a photoelectric detector,
antomatically testing the goods height and controlling the traval limit
◆
Rotary table can reset automatically, thus ensuring correctin-and out position
of the tray
◆ Convenient in film roll replacement, LLDPE film with outside
diameter≤280mm, width≤500mm and paper core 76mm can be used
◆ Custom-made
specification is available and also providing a complet set of packing system of
conveying line
◆ Percent of pre-stretch: 250%

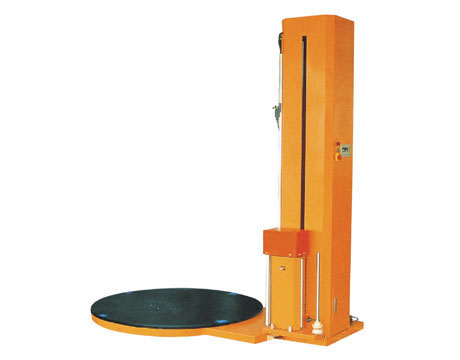

Model |
BL2000P |
Power supply |
1phase 220V/50Hz or 3phase 380V/50Hz 1.25KW |
Turn-table Diameter |
φ1500mm(φ1650mm&φ2000mm are option) |
Turn-table thickness |
85mm |
Speed of turn-table |
0-12r/min |
Turn-table loading |
220kgs |
Percent of Pre-stretch |
250﹪ |
Machine color |
Yellow Or Gray |
