Thermal-Shrink Packing Machine

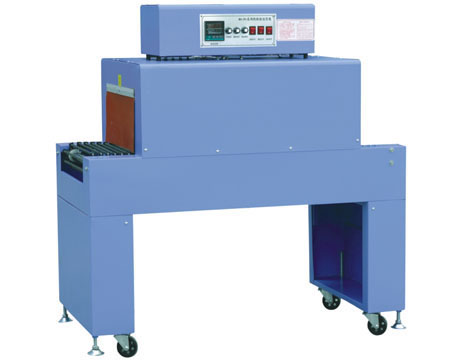

BSD400B Shrink Packager

Please call: +86-577-88346889
  • BSD400B Shrink Packager
  • BSD400B Shrink Packager
Desription
◆ Compact construction, High efficiency
◆ The use of intra-red Quartz heater tube results in lower the power consumption
◆ Great air-flow provides escellent heat distribution for an even shrink
◆ Temperature meter control temperature
◆ Automatic Temperature Control: The system features automatic temperature variation for convenient operation

◆ Variable speed live-roller(mesh) conveyor is easily adjusted

Model

 BSD400B

 BSD450B

 Power Supply

 220-240V/50Hz

 380-415V/50Hz

 Heater Power

 6.5KW

 8KW

 Conveyor Speed

 0-10m/min

 Tunnel Size

 830×400×200mm

 830×450×250mm

 Shink Product Size

 350×150mm

 400×200mm

 Conveyor Loading

 5kg Max.

 10kg Max.

 Machine Size

 1200×640×1240mm

 1200×690×1290mm

 Machine Weight

 80kg

 100kg

 Shrink Film

 PE, POF, PVC, PP
