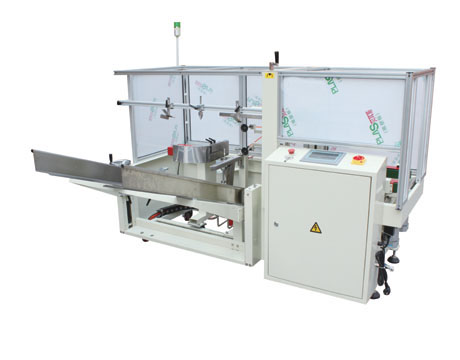

Vertical storage is adopted for storaging carton blanks, for which carton blanks can be added at any time without stopping the machine; It’s suitable for forming and sealing cartons of the same size. If carton size need to be changed, the operator should adjust the machine manually(finishing in 2-3minutes); It’s rationally designed so that the forming, folding and sealing process are accomplished simultaneously; All the parts are precise and durable,without causing any vibration in runing. Running steadily with long life; Light in weight, high performance and speed.
|
Model |
CES4035N |
|
Carton Size |
L220-500/W150-400/H100-350mm |
|
Table height |
H=650mm |
|
Speed |
≤10 box/min |
|
Dimension |
L2050×W1950×H1400mm |
|
Power supply |
220V/380V 50/60HZ |
|
Air source |
＞500L/min、 0.4~0.8 Mpa |
|
Tape |
W48mm-W60-75mm×L1000 |
|
Machine weight |
NW-320kg GW-350kg |
